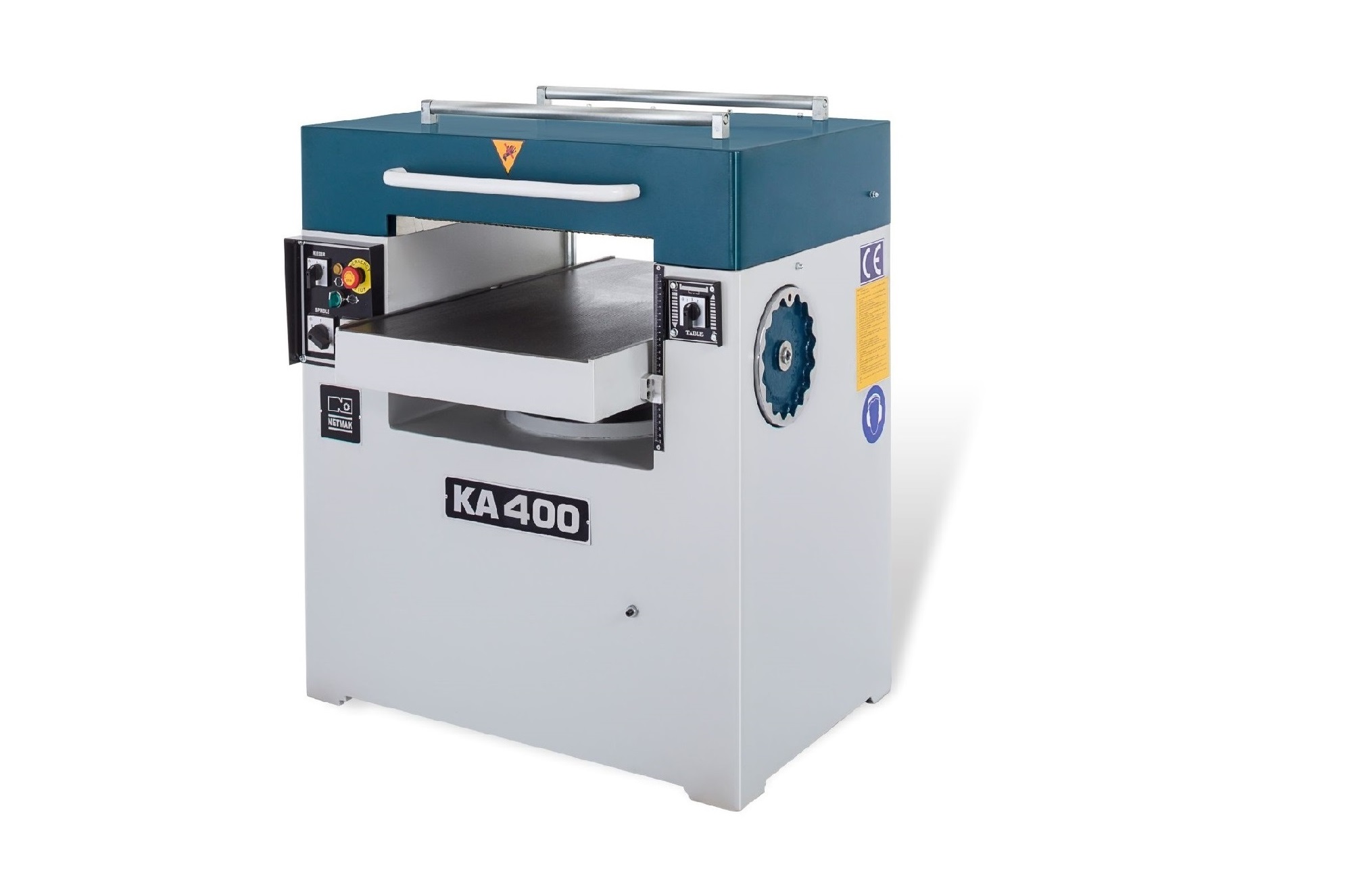

KA 400 Thicknessing Machine
KA 400 Thicknessing Machine
Product Code : KA 400
Product Name : Thicknessing Machine

* Steel Body

* Door Protection

* Electromechanical Brake System

* Polyurethane Feeder For Easy Feeding



Optional Specifications:

*Motorized height adjustment

* Sensitive Adjustment Possibility By Means Of Digital Height Indicator

* Helical cutter head



Table Size : 420x790 mm
Max. Working Width : 400 mm
Max. Working Height : 250 mm
Max. Cutting Depth : 8 mm
Number of Knives : 4
Diameter of Cutter Spindle : 4500 rpm
Feeding Speed : 7-14 m/min
Spindle Motor Power : 5.5 HP / 4 KW
Feeder Motor Power : 0,7-0,95 HP
Table Adjustment Motor* : 0,25 HP
Overall Dimensions : 800x1000x1050 mm
Net Weight** : 620 kg



* This speciality is not been in manual table options.

** The weight is different in manual table option.
